Gcv Valve 1/4*5/16

Name: Gcv Valve 1/4*5/16
SKU: 768af41e-340b-4966-b0ee-d2df9fada18e
Price: 350 INR
Availability: InStock

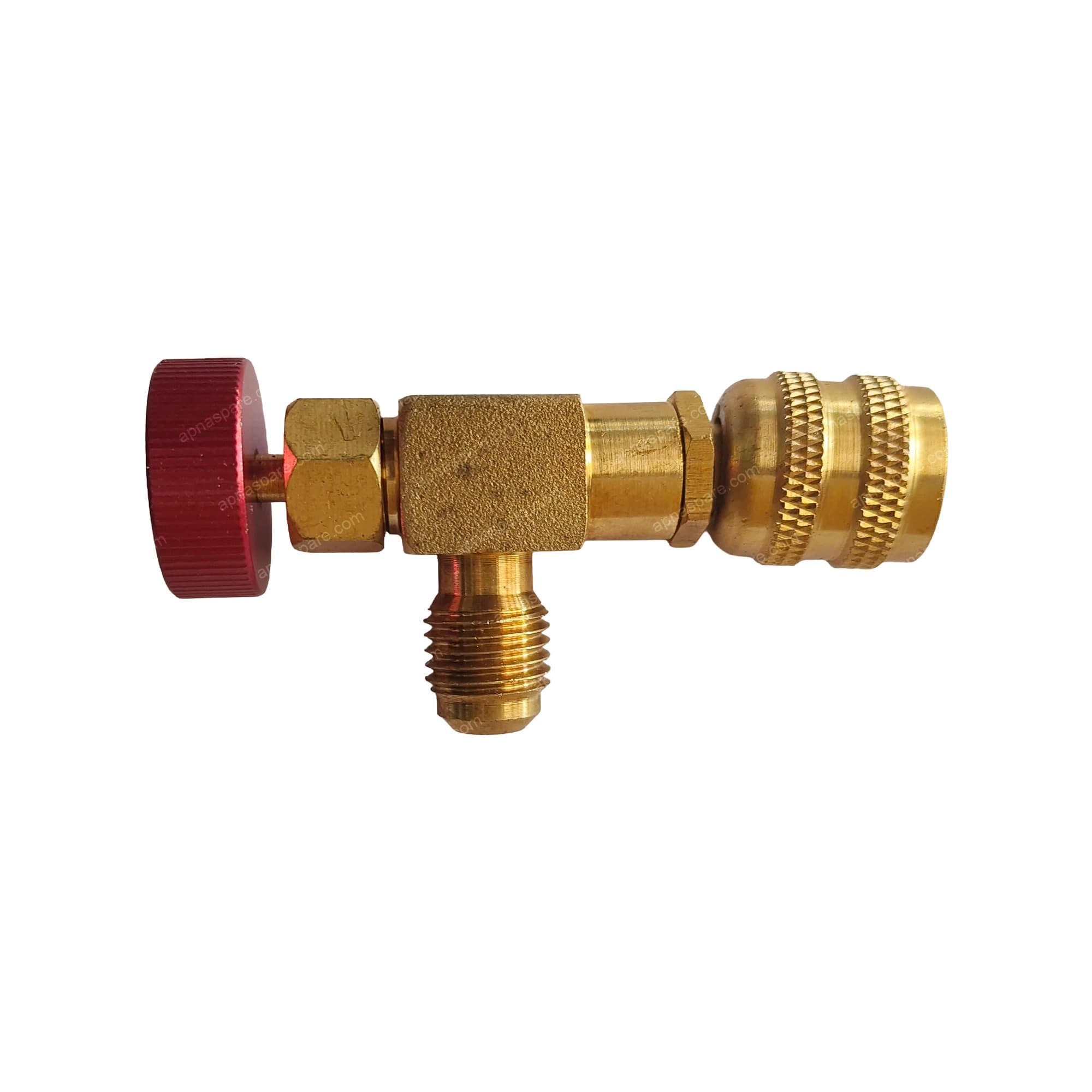

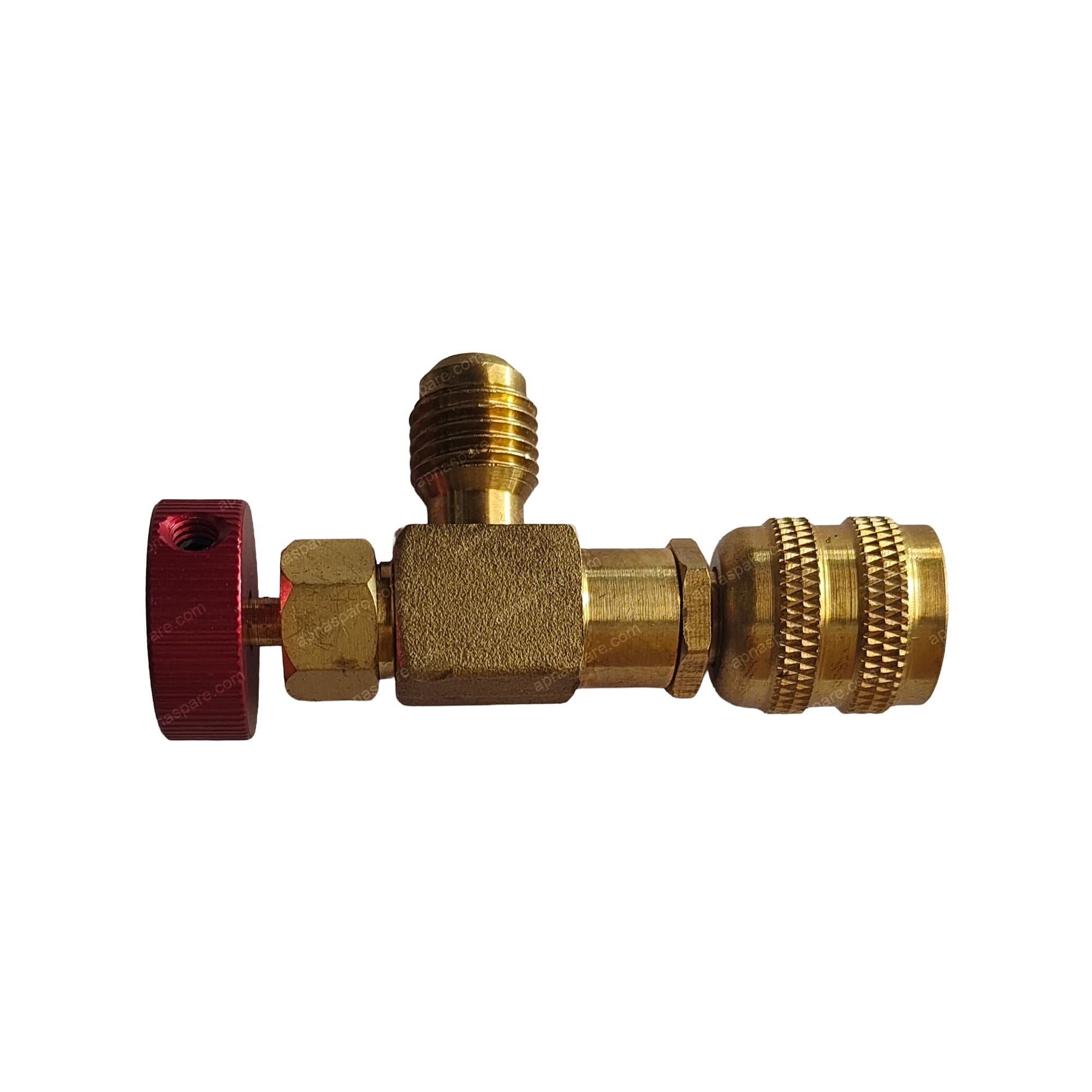

The GCV 1/4" × 5/16" Valve is a compact refrigeration retention and safety control valve designed to connect standard HVAC charging hoses to modern mini-split air conditioning systems. It features a 1/4" male flare on one side and a 5/16" female flare on the other, allowing technicians to manage high-pressure refrigerant flow safely without causing system leaks or finger frostbite.

₹350/ piece₹43820% off

Inclusive of all taxes

Qty

piece

Total · 1 piece₹350

Verified seller

No return policy

COD not available

Easy & secure payment

Fast delivery

Genuine parts

Need help with this product?

Chat on WhatsApp — your question is sent with this product's details automatically.

Check Delivery

Secure checkout with

Secured by Cashfree

Specifications

Key technical details at a glance

seal core liners: PTFE (Teflon) / High-Density Viton O-Rings (Refrigerant-resistant)
inlet/hose interface: 1/4" SAE Male Flare

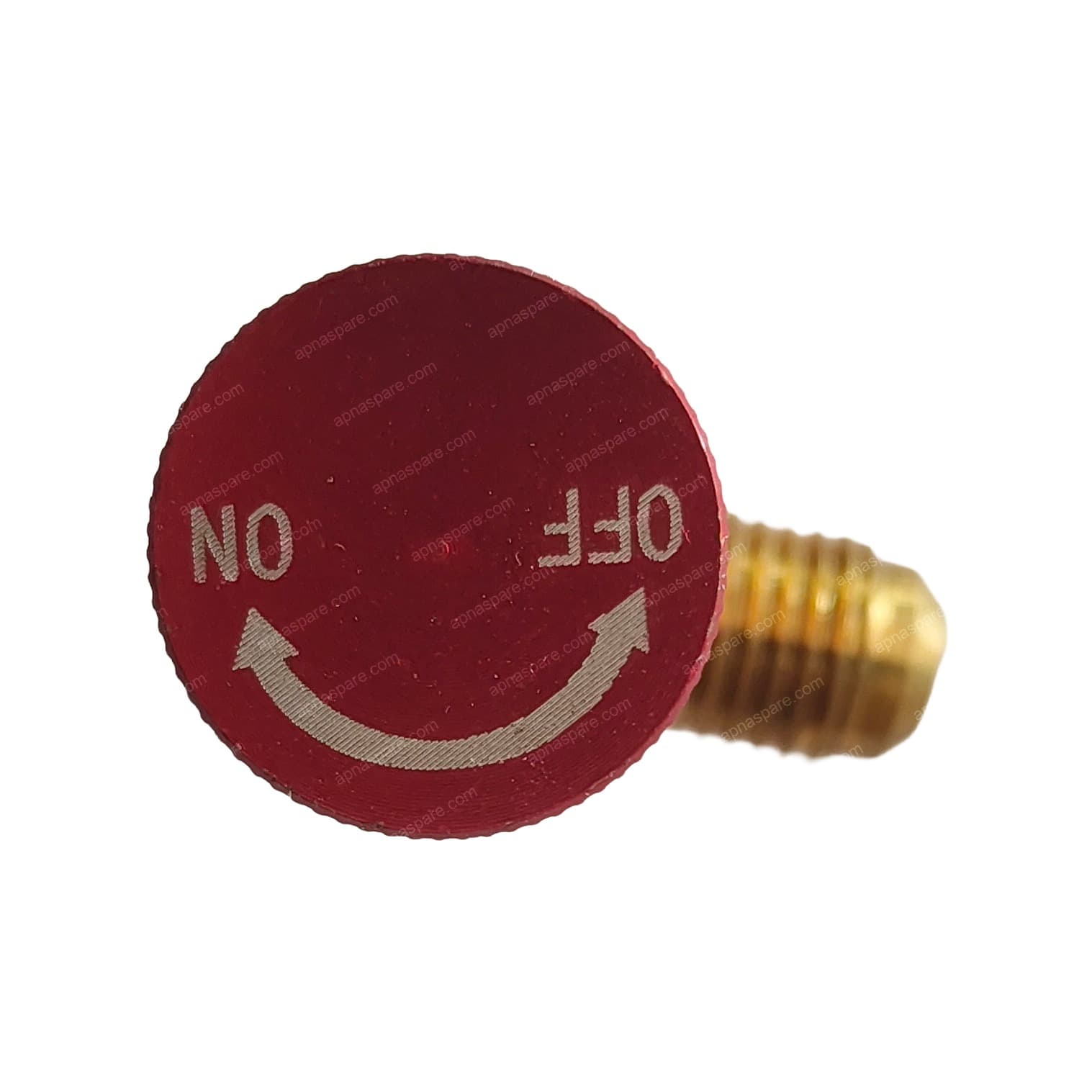

valve operation core: Actuator Pin / Spring-Loaded Core Depressor (Knob Controlled)
operating thermal limit: -40°C to +120°C

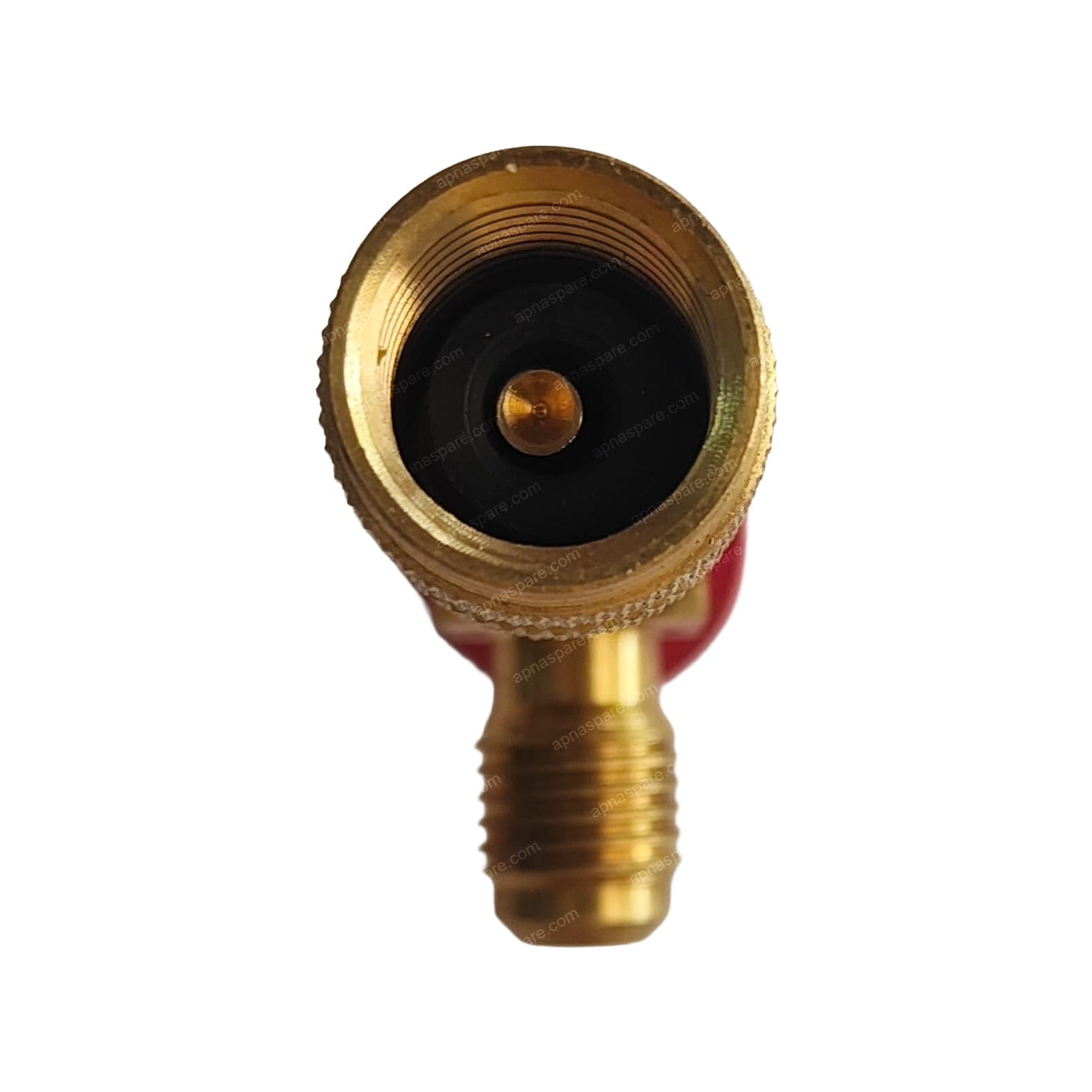

outlet/system interface: 5/16" SAE Female Flare (Fits R-410A / R-32 mini-split service access ports)

component identification: GCV Valve / Refrigeration Retention Valve / Core Depressor Valve
refrigerant compatibility: R-410A, R-32
burst pressure safety limit: Up to 60 bar (approx. 870 psi)
primary structural material: High-Grade Industrial Extruded Brass
maximum rated working pressure: 30 bar to 46 bar (approx. 435 psi to 667 psi)
