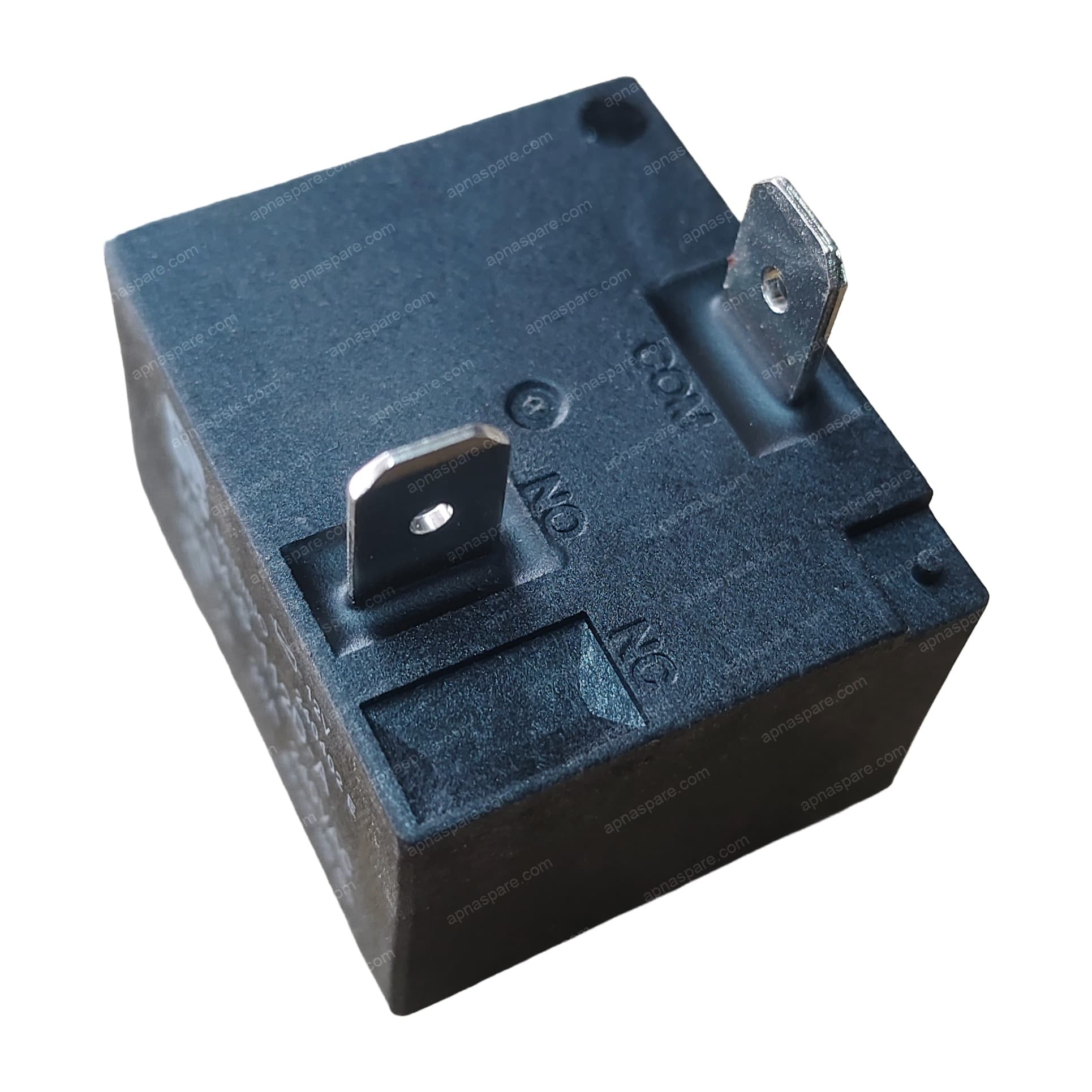

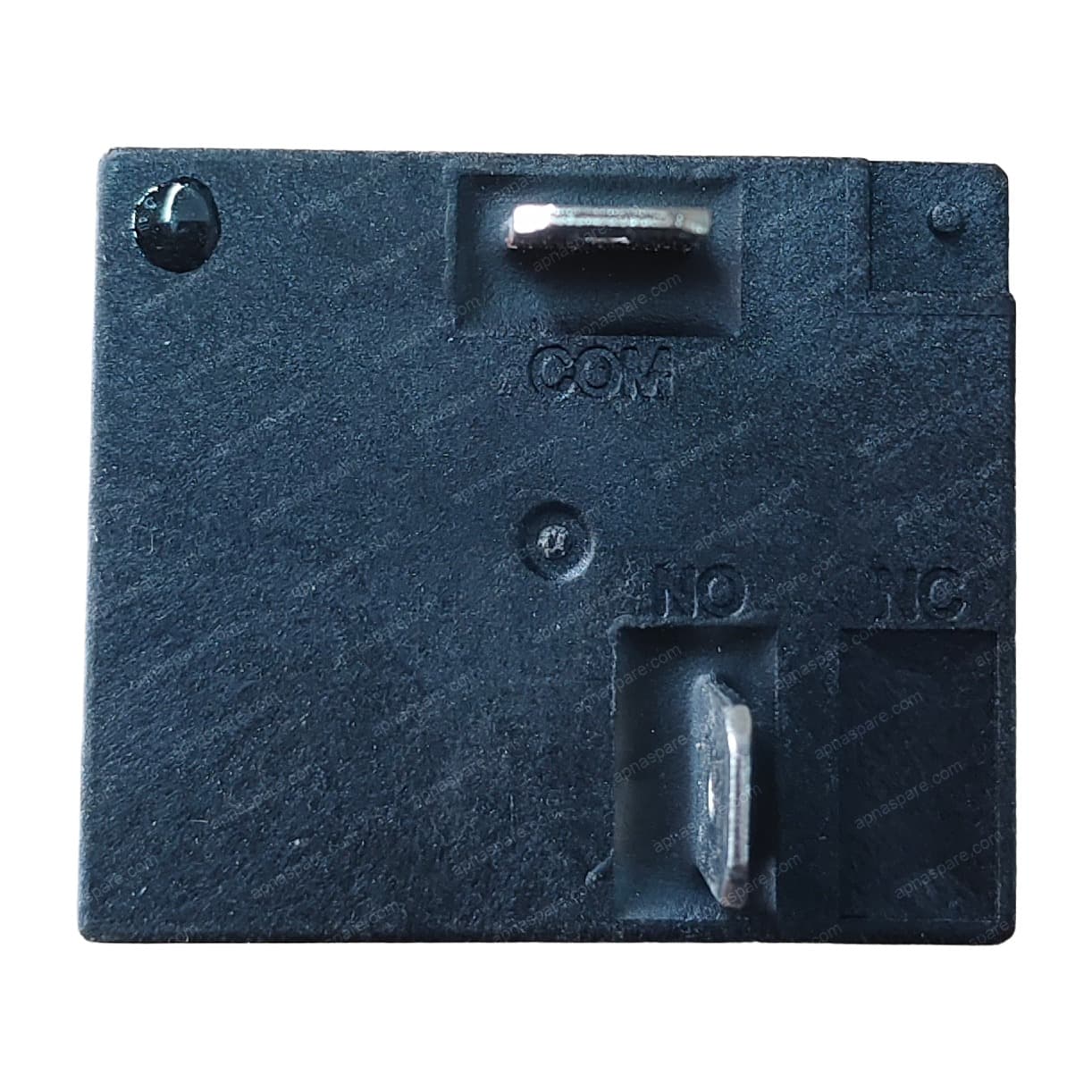

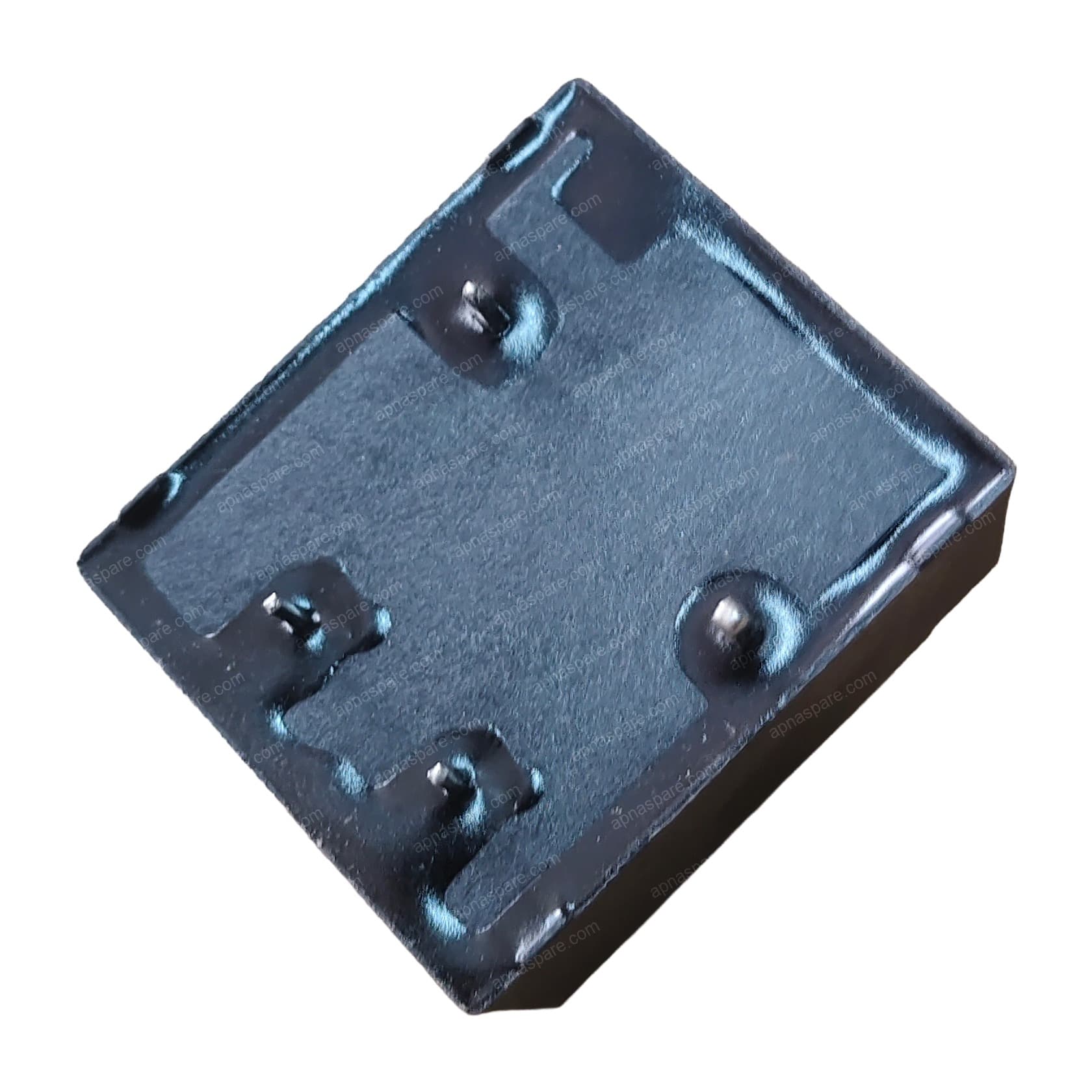

Relay PCB – Meishuo MPQ4-S-112D-A 12VDC Power Relay, 30A 240VAC Contact | SPST-NO, 4-Pin | Appliance Control Board Relay
Larger-format 4-pin PCB power relay, Meishuo MPQ4-S-112D-A, with a 12VDC coil switching a hefty 30A/240VAC load — used on appliance control boards to drive motors, heaters and compressor circuits from a low-voltage signal.
Price
₹200/ piece₹28630% off
Inclusive of all taxes
Qtypiece
Total · 1 piece₹200
Defective parts replaced
Easy & secure payment
Fast delivery
Genuine parts
Need help with this product?
Chat on WhatsApp — your question is sent with this product's details automatically.
Secure checkout with
Secured by Cashfree
Specifications
Key technical details at a glance
- part type
- Subminiature PCB power relay (large format)
- pin count
- 4 (2 PCB + 2 QC terminals)
- coil power
- 900mW
- dimensions
- Approx. 32 x 27.1 x 20.1mm
- part number
- MPQ4-S-112D-A
- coil voltage
- 12VDC
- contact form
- SPST-NO (1 Form A)
- manufacturer
- Meishuo
- certifications
- UL, TÜV, CQC, Ex nC IIC Gc
- contact rating
- 30A, 240VAC
- coil resistance
- 160Ω
- contact material
- Silver alloy
- common applications
- Motor-load switching, heater circuits, compressor control, general appliance control boards
- operating temperature
- -40°C to +105°C
